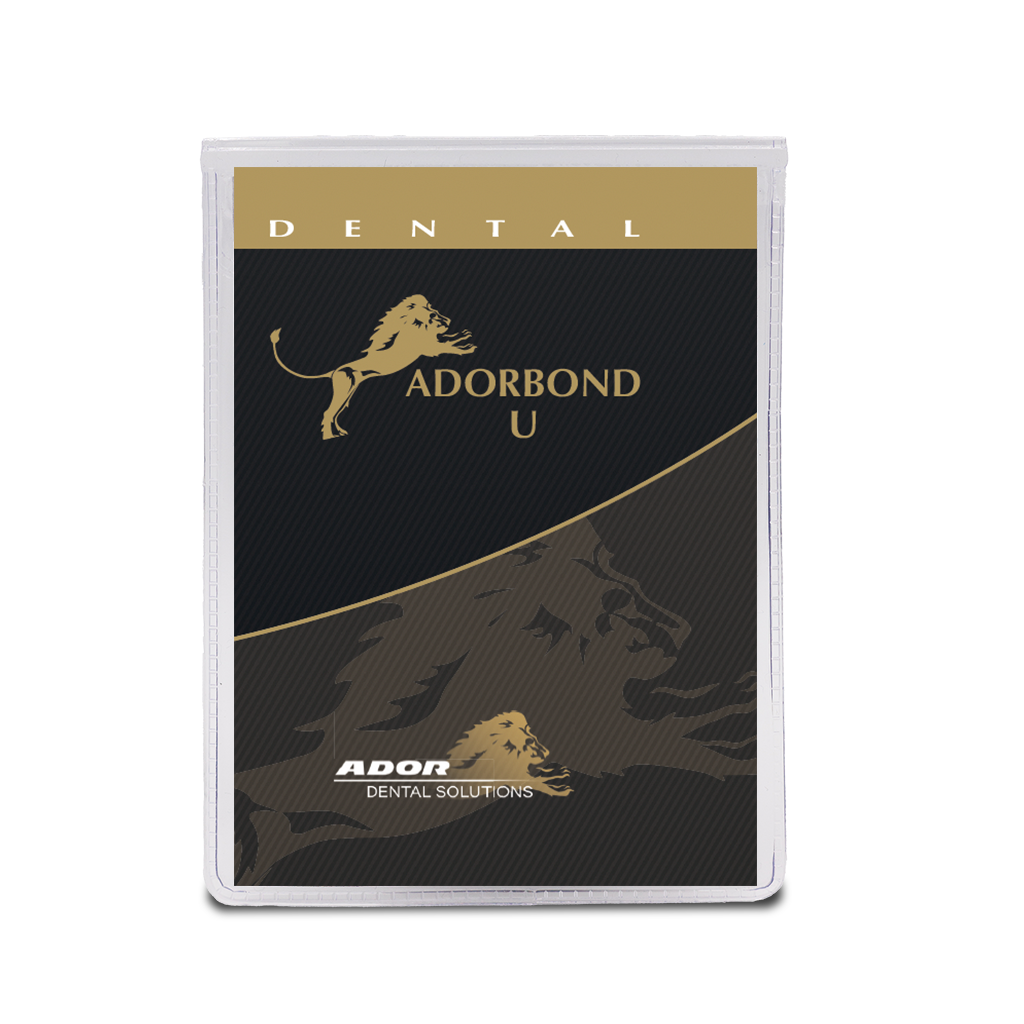

ADORBOND U

Description

>>> GebrAnw-Dental-Base-Alloy-Adorbond-U.pdf <<<

Type:	High-gold containing metal-ceramic alloy on the gold basis, type 4 (extra hard)  acc. DIN EN ISO 22674
Colour:	pale yellow

Applicable scope:	Inlays, Onlays	●
	Crowns	●
	Small bridges	●
	Bridges of any physiological span	●
	Milling, cone and attachment works	●*
	Modeling casting	●

Composition:	Au	77,40
(mass fraction in %)	Pt	9,80
	Pd	8,90
	Ir	0,10
	Ag	1,20
	In	1,50
	Sn	0,50
	Cu	0,30
	Fe	0,30

Technical specifications:	Density in g/cm³	18,0
	Vickers hardness HV 5/30	(s)180      (n)210      (a-n)240
	Yield strength Rp0,2 in MPa	(s)430      (n)490      (a-n)580
	Elongation at break in %	(s)12        (n)11        (a-n)9
	Average linear CTE 25 – 500 °C in 10-6 K-1	14,0
	Average linear CTE 25 – 600 °C in 10-6 K-1	14,2
	Elastic modulus in GPa	100
	Melting interval in °C	1160 - 1280

Processing:	Preheating temp. of the casting moulds in °C	850
	Casting temperature in °C	1430
	Crucibles	Graphite/ceramic
	Oxide firing	980°C/15min
	Curing	550°C/15min

Suitable solders:	Joints before ceramic firing	AL 1060 W
	Joints after ceramic firing	AL 750

1) Brief description:

     s – self-curing, n – after ceramic firing, a-s – curing from s condition

     a-n – curing from n condition

2) All information about cured condition is given according to the alloy:

     – Oxide firing 10min/ 960°C + 4x4min/ 960°C for yellow conventional bonding alloys

     – Oxide firing 10min/ 980°C + 4x4min/ 980°C for white conventional bonding alloys

     – Oxide firing 10min/ 800°C + 4x4min/ 800°C for LFC-systems

   Corresponding data are true under these conditions only.

3) The ceramic firing should be carried out according to the manufacturer's instructions.

*) Depending on the copper content, discoloration may occur. We refer here to our document INDIFKGRX.
